OpenFrames::MarkerArtist Class Reference

This class draws markers at trajectory points. More...

#include <MarkerArtist.hpp>

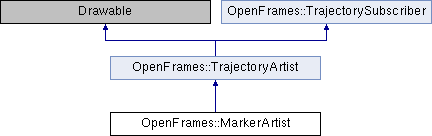

Inheritance diagram for OpenFrames::MarkerArtist:

Public Types
enum	DrawnMarkers { START = 1, INTERMEDIATE = 2, END = 4 }
enum	IntermediateType { TIME = 1, DISTANCE, DATA }

Public Member Functions
	MarkerArtist (const Trajectory *traj=NULL)
	MarkerArtist (const MarkerArtist &ca, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
virtual Object *	cloneType () const
virtual Object *	clone (const osg::CopyOp &copyop) const
virtual bool	isSameKindAs (const osg::Object *obj) const
virtual const char *	libraryName () const
virtual const char *	className () const
virtual void	setTrajectory (const Trajectory *traj)
bool	setXData (const Trajectory::DataSource &src)
bool	setYData (const Trajectory::DataSource &src)
bool	setZData (const Trajectory::DataSource &src)
void	setMarkers (unsigned int markers)
void	setMarkerColor (unsigned int markers, float r, float g, float b)
void	setMarkerSize (unsigned int size)
bool	setMarkerImage (const std::string &fname)
bool	setMarkerShader (const std::string &fname)
void	setAutoAttenuate (bool attenuate)
bool	getAutoAttenuate () const
void	setIntermediateType (IntermediateType type)
void	setIntermediateSpacing (double spacing)
void	setIntermediateDirection (DrawnMarkers direction)
virtual void	drawImplementation (osg::RenderInfo &renderInfo) const
virtual void	dataCleared (Trajectory *traj)
virtual void	dataAdded (Trajectory *traj)
void	computeAttenuation ()
Public Member Functions inherited from OpenFrames::TrajectoryArtist
	TrajectoryArtist (const TrajectoryArtist &ta, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
virtual bool	isSameKindAs (const Object *obj) const
const Trajectory *	getTrajectory () const

Protected Member Functions
virtual osg::BoundingBox	computeBoundingBox () const
void	verifyData () const
void	resetMarkerShader ()
Protected Member Functions inherited from OpenFrames::TrajectoryArtist
void	RTE_glVertex (osg::Vec3d &point, osg::GLExtensions &glext) const

Protected Attributes
Trajectory::DataSource	_dataSource [3]
unsigned int	_markers
IntermediateType	_intermediateType
double	_intermediateSpacing
DrawnMarkers	_intermediateDirection
float	_startColor [3]
float	_endColor [3]
float	_intermediateColor [3]
bool	_dataValid
bool	_dataZero
bool	_shouldAttenuate
osg::ref_ptr< osg::Shader >	_fragShader
Protected Attributes inherited from OpenFrames::TrajectoryArtist
osg::ref_ptr< const Trajectory >	_traj
osg::ref_ptr< osg::Program >	_program

Detailed Description

This class draws markers at trajectory points.

The MarkerArtist is a type of TrajectoryArtist that draws markers at points of a trajectory. Markers can be standard OpenGL points or point sprites that use a specified image. Markers can be drawn at the beginning or end of a Trajectory, or at specified intermediate points.

Member Enumeration Documentation

DrawnMarkers

enum OpenFrames::MarkerArtist::DrawnMarkers

Indicates which data points should be drawn as markers.

IntermediateType

enum OpenFrames::MarkerArtist::IntermediateType

Indicates how intermediate marker spacing is determined.

Member Function Documentation

cloneType()

virtual Object* OpenFrames::MarkerArtist::cloneType ( ) const

inlinevirtual

Standard OSG node methods.

computeAttenuation()

void OpenFrames::MarkerArtist::computeAttenuation

(

)

Compute the auto attenuation coefficients.

computeBoundingBox()

virtual osg::BoundingBox OpenFrames::MarkerArtist::computeBoundingBox ( ) const

protectedvirtual

Inherited from TrajectoryArtist.

Reimplemented from OpenFrames::TrajectoryArtist.

dataAdded()

virtual void OpenFrames::MarkerArtist::dataAdded ( Trajectory *  traj )

virtual

Tell artist that data was added. This is automatically called.

Implements OpenFrames::TrajectoryArtist.

dataCleared()

virtual void OpenFrames::MarkerArtist::dataCleared ( Trajectory *  traj )

virtual

Tell artist that data was cleared. This is automatically called.

Implements OpenFrames::TrajectoryArtist.

drawImplementation()

virtual void OpenFrames::MarkerArtist::drawImplementation ( osg::RenderInfo &  renderInfo ) const

virtual

Do the actual drawing

resetMarkerShader()

void OpenFrames::MarkerArtist::resetMarkerShader ( )

protected

Reset shader to default state (circular point)

setAutoAttenuate()

void OpenFrames::MarkerArtist::setAutoAttenuate

(

bool

attenuate

)

Specify whether to automatically shrink/grow the marker size as the camera gets closer or farther from the marker.

setIntermediateDirection()

void OpenFrames::MarkerArtist::setIntermediateDirection

(

DrawnMarkers

direction

)

Specify if the markers should be computed forward from the start of the trajectory, or backward from the end of the trajectory. Use MarkerType enum values START or END

setIntermediateSpacing()

void OpenFrames::MarkerArtist::setIntermediateSpacing

(

double

spacing

)

Set the intermediate marker spacing

setIntermediateType()

void OpenFrames::MarkerArtist::setIntermediateType

(

IntermediateType

type

)

Set the intermediate marker parameters

setMarkers()

void OpenFrames::MarkerArtist::setMarkers

(

unsigned int

markers

)

Set the markers to be used, from enum DrawnMarkers

setTrajectory()

virtual void OpenFrames::MarkerArtist::setTrajectory ( const Trajectory *  traj )

virtual

Set the trajectory to be drawn.

Reimplemented from OpenFrames::TrajectoryArtist.

setXData()

bool OpenFrames::MarkerArtist::setXData

(

const Trajectory::DataSource &

src

)

Set the data to be used for plotting x/y/z components

verifyData()

void OpenFrames::MarkerArtist::verifyData ( ) const

protected

Verify whether the requested data is valid.

---

The documentation for this class was generated from the following file:

• include/OpenFrames/MarkerArtist.hpp
